HC-A246SC
NGBBP
CAN AM ATV
Specifications

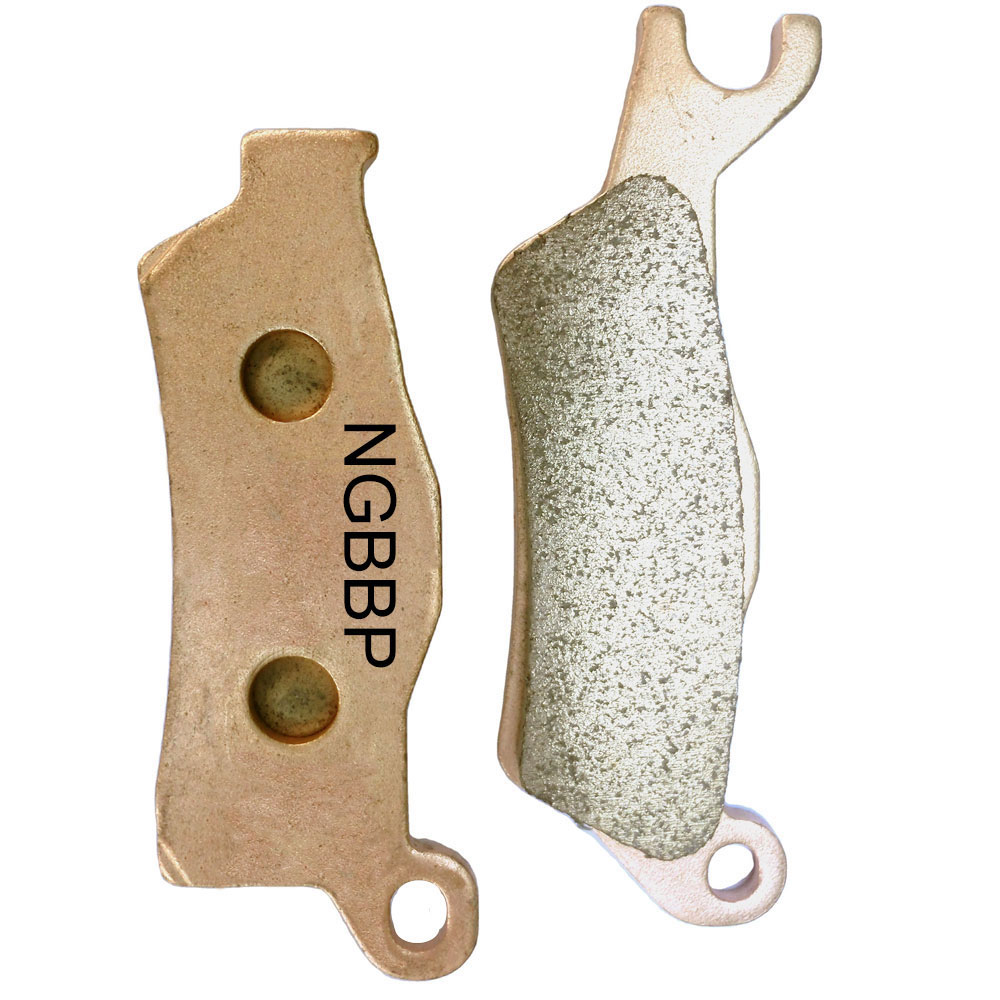

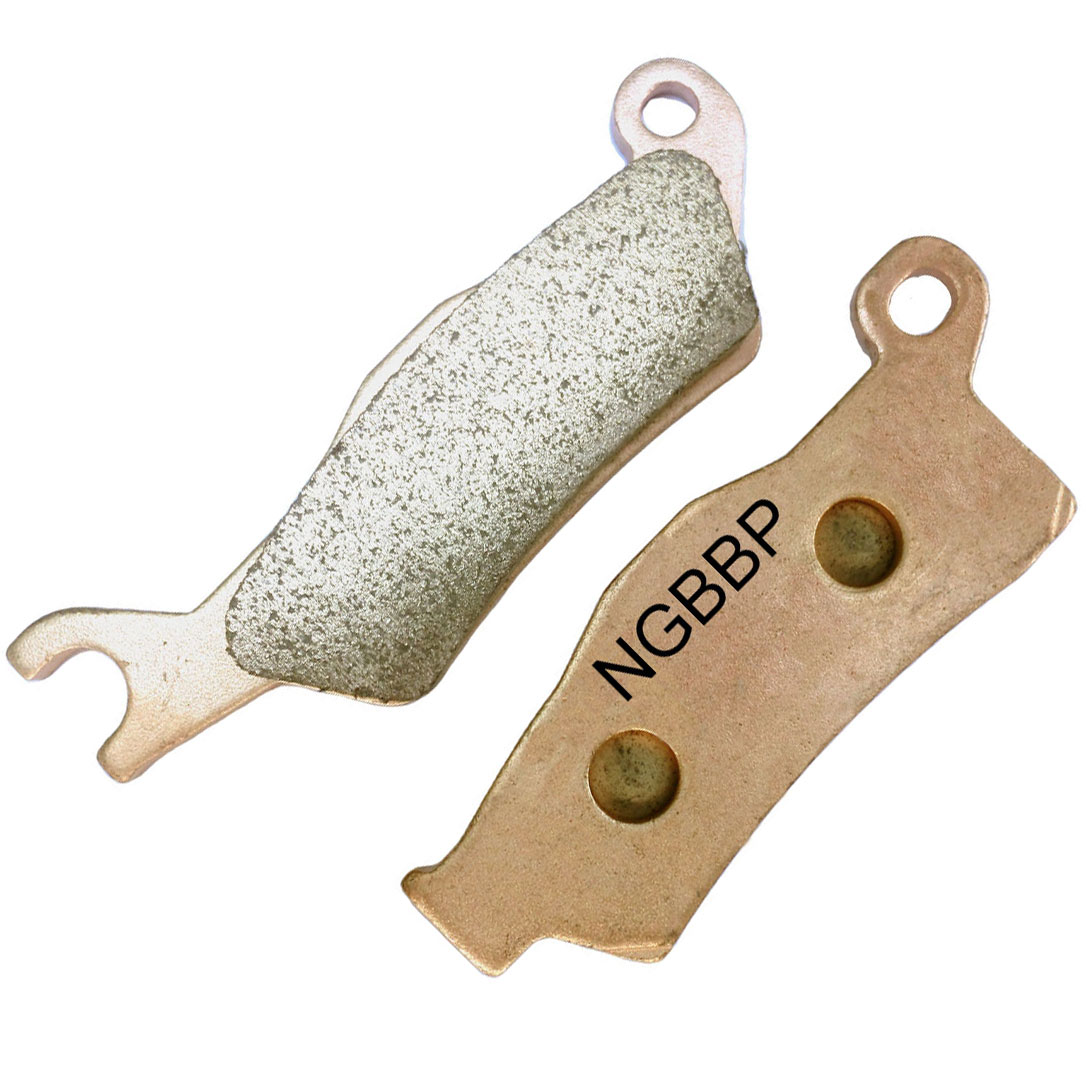

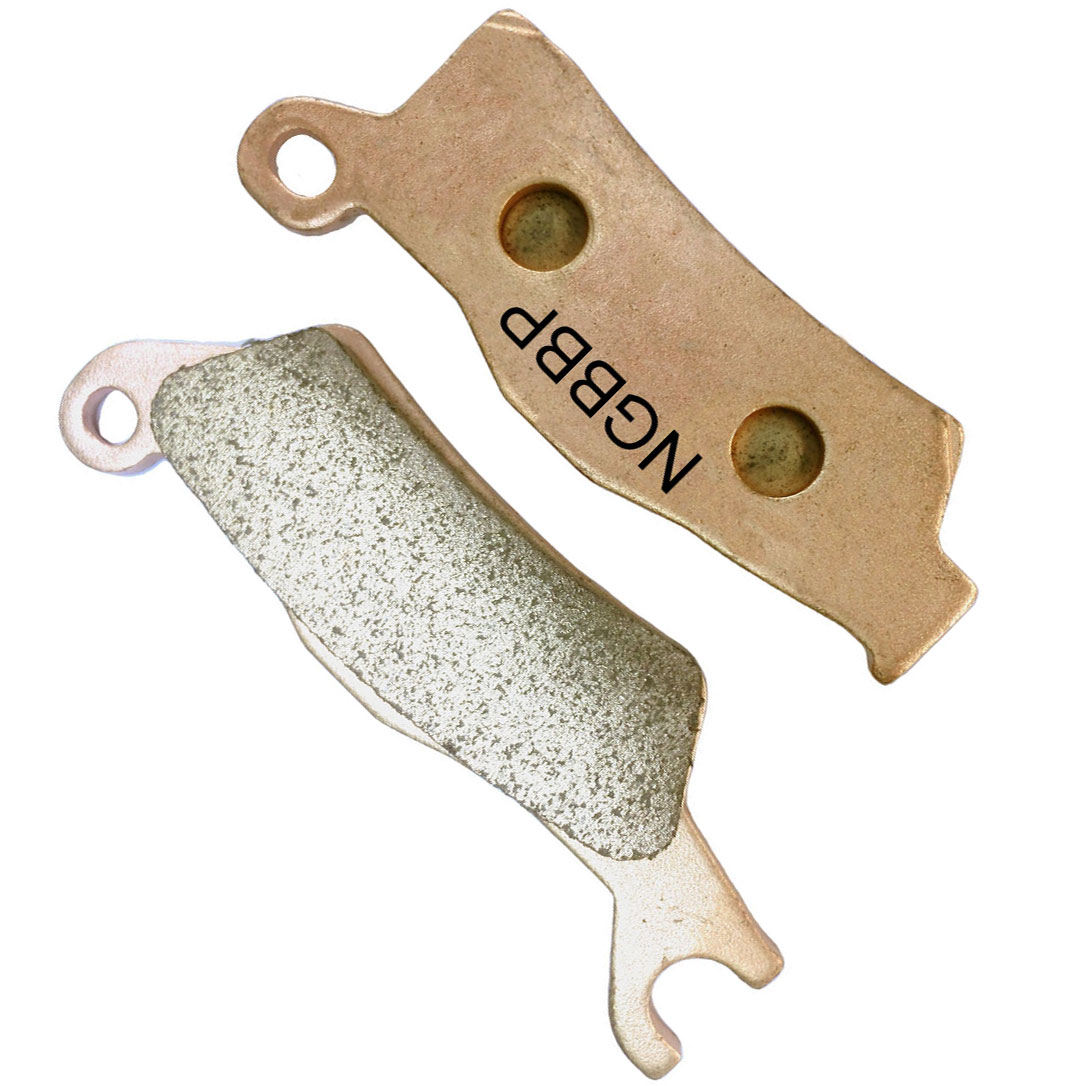

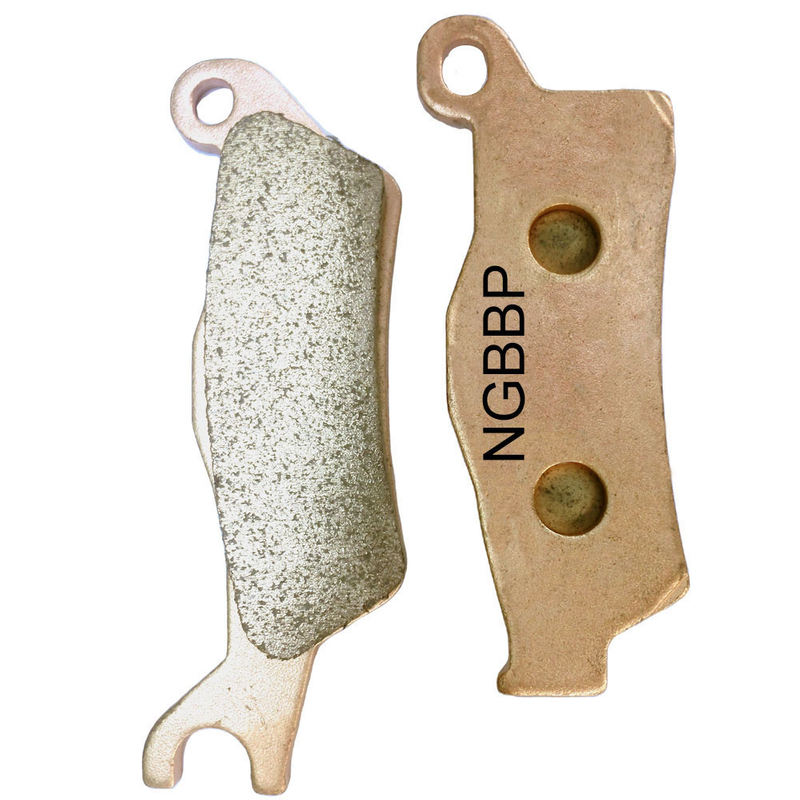

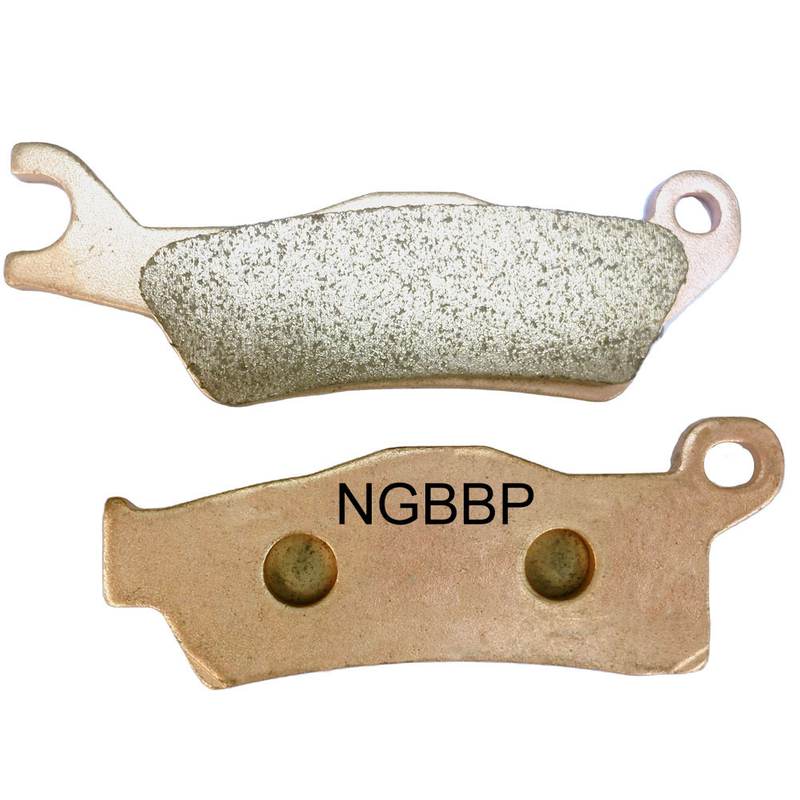

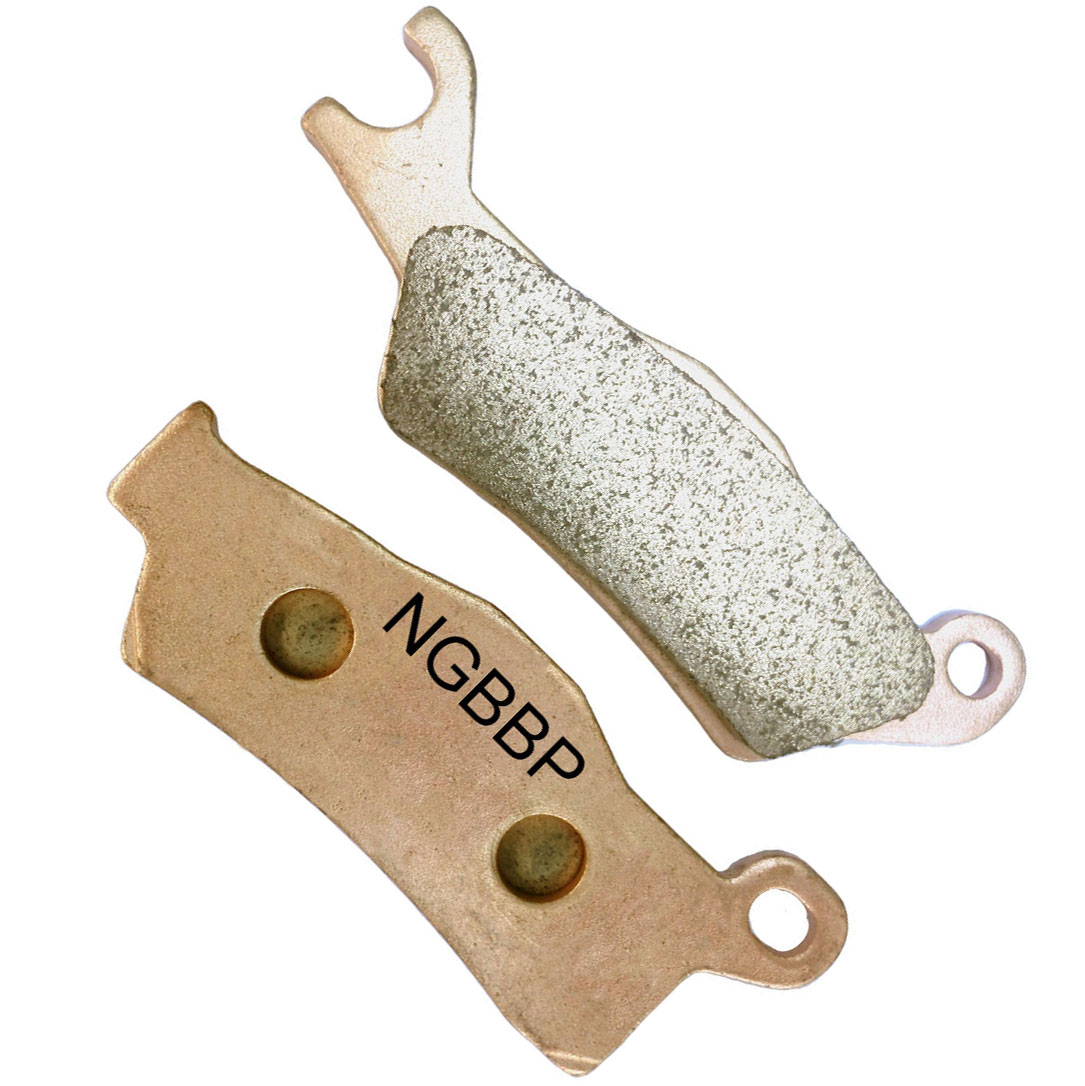

Factory direct sale, high quality at reasonable price HH sintered copper ATV / UTV brake pad

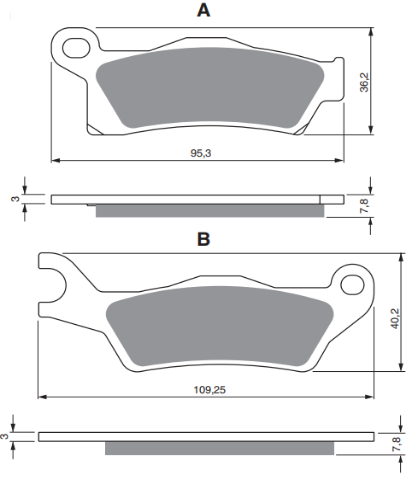

| DRAWING |  |
| Model | HC-A246SC |
| Material | Sintered copper |
| Size | A 109 x 39 x 9mm B 96.5 x 36.5 x 9mm |
| Packaging | Vacumm shrink/ blister/ bubble shell |
| Brand | NGBBP |
| Color | Golden , Copper color |
| Process | Sintered Powder Metallurgy |
| Applicable terrain | OFF ROAD ,RACING ,utv atv |
| OEM/ODM | Avaiable |
| Warrany | One year |
| Fit for | CAN AM Outlander Max 450,500,570 ,650 ,800.1000 4x4 STD/DPS/XT Renegade 650 .800 Efi ,1000 STD XXC |
| MOQ | 300SETS |
| Certification | ISO14001 ,IATF16949 |
| Place of origin | China |
Characteristics
HH Grade high static friction coefficient up to 0.55μ .
Superior stopping power compared to carbon organic, Kevlar organic, or semi-metallic organic pads.
High temperature resistance up to 800℃，(max. 1004°C) .
The lowest wear rate determines Low abrasive interaction with the brake rotor.
Performing exceptionally well in wet or muddy condition .from commuting, to stunt or street-race riding, to extended high-speed highway or road-race driving.
Compatible with cast iron, steel or advanced stainless-steel rotors.
The sintered friction material is soldered to the copper coated backing plate by the means of powder metalurgy. so separation is virtually eliminated
Parameters Chart
Application
| HC-A246 | APPLICATION | |||
 | CAN AM | |||
| Outlander 500 4x4 (STD/DPS/XT) 13 F(Right)&R | ||||
| Outlander Max 500 4x4 (STD/DPS/XT) 13 F(Right)&R | ||||
| Renegade 500 (STD) 12-13 F(Right)&R | ||||
| Outlander 650 4x4 (STD/DPS/XT) 13 F(Right)&R | ||||
| Outlander 800 R STD 12-13 F(Right)&R | ||||
| Outlander 800 R XT 12-13 F(Right)&R | ||||
| Outlander 800 R 4x4 9STD/DPS/XT/XT-P) 13 F(Right)&R | ||||
| Renegade 800 R STD 12-13 F(Right)&R | ||||
| Renegade 800 R XXC 12-13 F(Right)&R | ||||
| Outlander 1000 STD 12 F(Right)&R | ||||
| Outlander 1000 XT 12-13 F(Right)&R | ||||
| Outlander 1000 4x4 (DPS) XT/XT-P1 13 F(Right)&R | ||||
| Outlander 1000 4x4 (LTD) 13 F(Right)&R | ||||
| Outlander 1000 4x4 (XMR) 13 F(Right)&R | ||||
| Competitor X Ref | Outlander Max 1000 4x4 (DPS/XT/XT-P) 13 F(Right)&R | |||
| SBS | Vesrah | Ferodo | EBC | Renegade 1000 STD 12-13 F(Right)&R |
| FA617 | Renegade 1000 XXC 12-13 F(Right)&R | |||
