| Quantity: | |
|---|---|
HC-A154SC
NGBBP
HONDA, KAWASAKI, SUZUKI
YAMAHA, HONDA, PEUGEOT, SUZUKI, KAWASAKI
YAMAHA, PIAGGIO, KAWASAKI, SUZUKI
Specifications

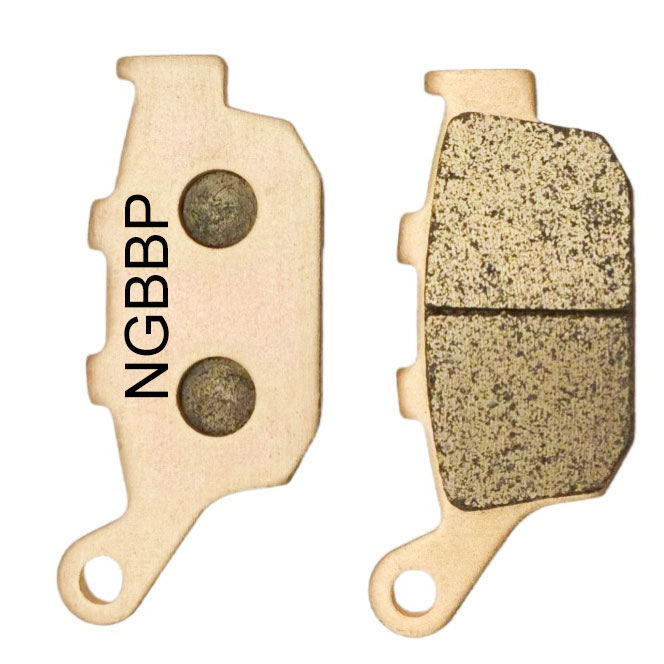

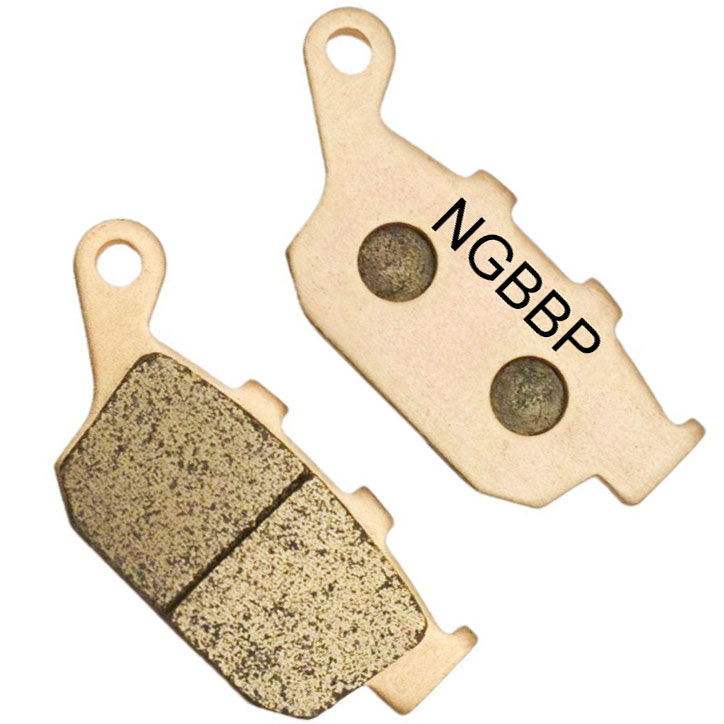

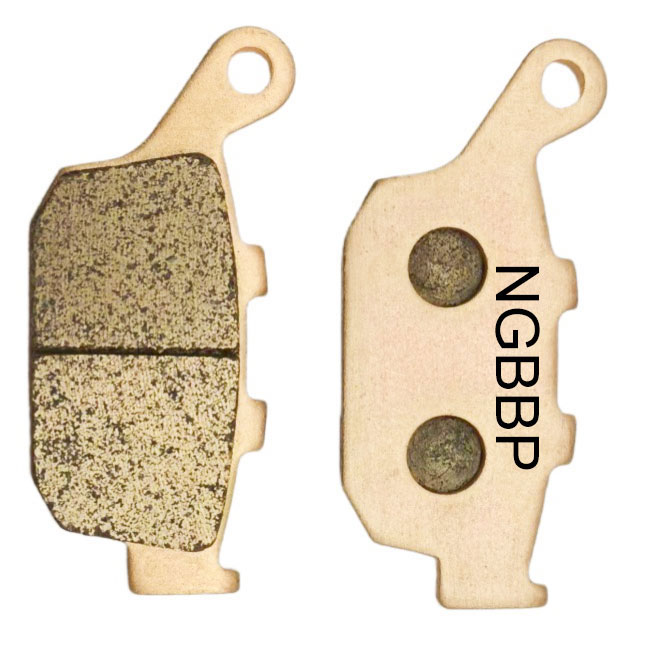

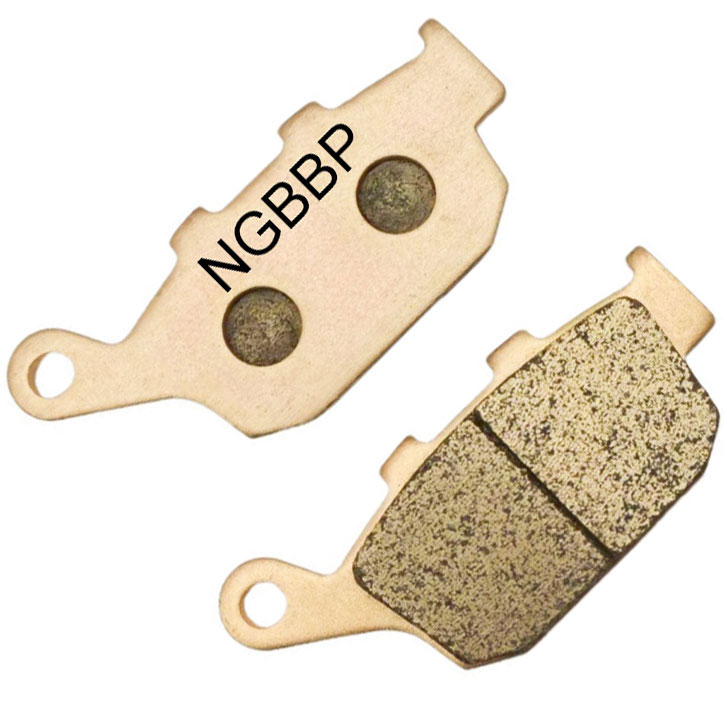

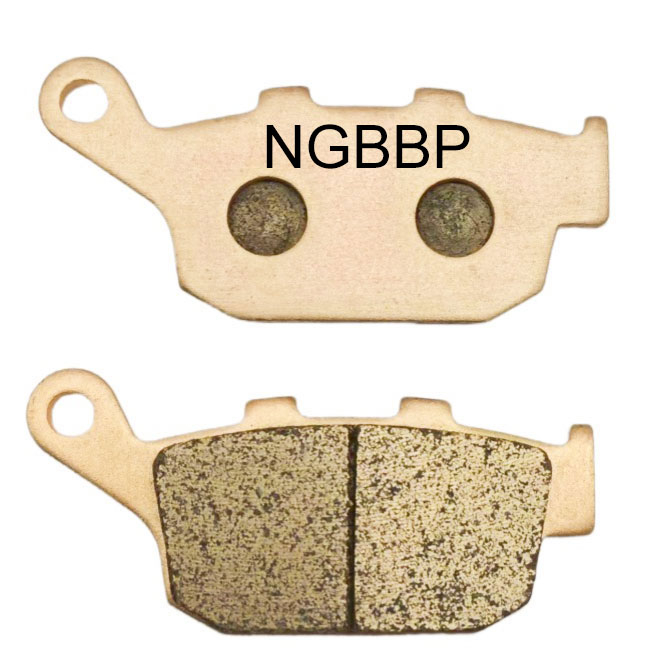

Factory direct sale, high quality at low price HH sintered copper brake pad
| Model | HC-A154SC |
| Material | Sintered Copper |
| Size | 86 x 40 x 10.5mm |
| Packaging | Vacumm shrink/ blister/ bubble shell |
| Brand | NGBBP |
| Color | Golden , Copper color |
| Process | Sintered Powder Metallurgy |
| Applicable terrain | STREET ,OFF ROAD ,RACING ,MOTOCROSS... |
| MOQ | 300SETS |
| OEM/ODM | Avaiable |
| Warrany | One year |
| Fit for | FA140 HH Sintered Motorcycle Brake Pad for HONDA FES 125 Pantheon CB 250 Hornet CBR 400 CB 500 X NX 500 Dominator CTX 700 XRV 750 Africa Twin /KAWASAKI EN 650 Z 750 R Z 800 Z 900 |
| Certification | ISO14001 ,IATF16949 |
| Place of origin | China |
Characteristics
HH Grade high static friction coefficient up to 0.55μ .
Superior stopping power compared to carbon organic, Kevlar organic, or semi-metallic organic pads.
High temperature resistance up to 800℃，(max. 1003°C) .
The lowest wear rate determines Low abrasive interaction with the brake rotor.
Performing exceptionally well in wet or muddy condition .from commuting, to stunt or street-race riding, to extended high-speed highway or road-race driving.
Compatible with cast iron, steel or advanced stainless-steel rotors.
The sintered friction material is soldered to the copper
coated backing plate by the means of powder metalurgy. so separation is virtually eliminated
Parameters Chart
Application
| HC-A154 | APPLICATION | |||
 | HONDA | |||
| FES 125 3/4/5 Pantheon 03-06 R | ||||
| FES 150 3/4/5 Phantom 03-06 R | ||||
| CB 250 FT/FV/FX/FY/F1 ‘Hornet’ 96-01 R | ||||
| CBR 250 RH (MC17) 87 R | ||||
| FES 250 Y/1/2/5 Foreight 00-05 R | ||||
| (MC21-101/102/106) 90-92 R | ||||
| NSR 250 R9N (MC21-106) 92 R | ||||
| VT 250 FL Spada/Castec 88-90 R | ||||
| VTR 250 W/Y/1-7 (MC33) 98-07 R | ||||
| VTR 250-9 09-10 R | ||||
| CB-1 (CB 400 F) 89-90 R | ||||
| NT 400 ‘Bros’ NC25 R | ||||
| CB 400 SF (F3V) Superfour (NC31) 97 R | ||||
| CB 400 Four V/V-II/W/W-II (NC36) 97-98 R | ||||
| CBR 400 RRJ/K (NC23 Tri-arm) 92-93 R | ||||
| (NC29 Gull-arm) 90-94 R | ||||
| VFR 400 RH2/RJ (NC24) 87-88 R | ||||
| CB 500 FAD (Twin) 13 R | ||||
| NX 500 J/K/L/M/N/P/R/S/T Dominator 92-96 R | ||||
| NTV 600 J/K/M Revere 88-92 R | ||||
| XL 600 VM/VN/VP/VR/VT/VV/VW/VX | ||||
| “Trans Alp” 91-00 R | ||||
| FMX 650 5/6 05-08 R | ||||
| NT 650 VW/VX/VY/V1 “Deauville” 98-01 R | ||||
| XL 650 VY/V1-V7 Transalp 00-07 R | ||||
| XRV 650 J Africa Twin 88-89 R | ||||
| NC 700 SC/SD (Manual Gearbox) 12-13 R | ||||
| XL 700 V8/V9/VA (Transalp/2 piston front caliper | ||||
| /ABS on rear disc) 08-11 R | ||||
| XRV 750 L/M/N/P/R/S/T/V/W/X/Y | ||||
| “Africa Twin” 90-03 R | ||||
| Z 800 E (Z 800 CDS - Non ABS) 13 R | ||||
| KAWASAKI | ||||
| Z 750 R Non ABS (ZR 750 NBF/NCF) 11-12 R | ||||
| X 750 R ABS (ZR 750 PBF/PCF) 11-12 R | ||||
| KREIDLER | ||||
| 125 Street DD 12-13 R | ||||
| SUZUKI | ||||
| Competitor X Ref | XF 650 V/W/X/Y Freewind 97-02 R | |||
| SBS | Vesrah | Ferodo | EBC | PEUGEOT |
| 614 | VD-147 | FDB531 | FA140 | SV 250 01-02 R |
