HC-A161SC
NGBBP
HONDA
HONDA
HONDA
HONDA
Specifications

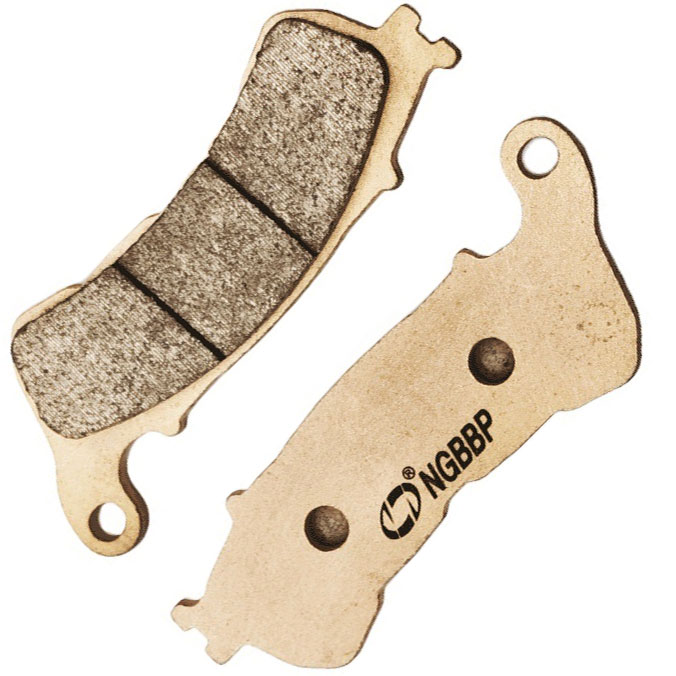

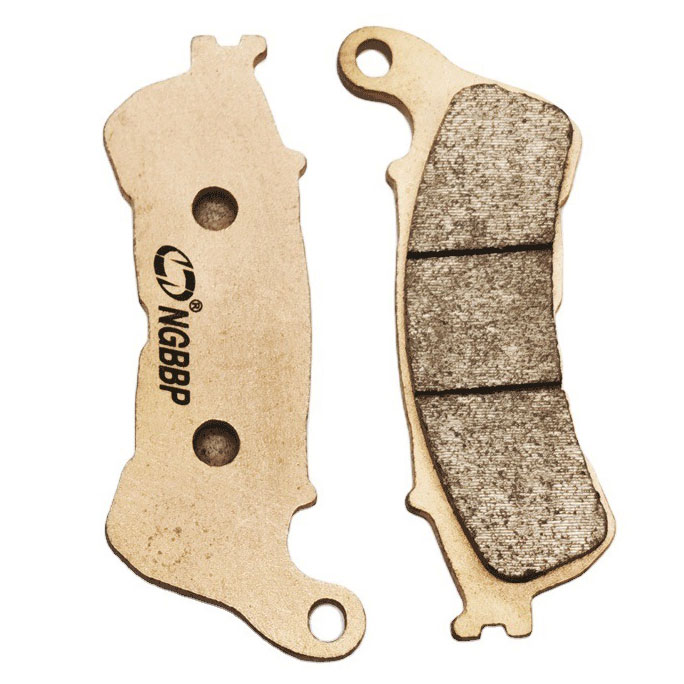

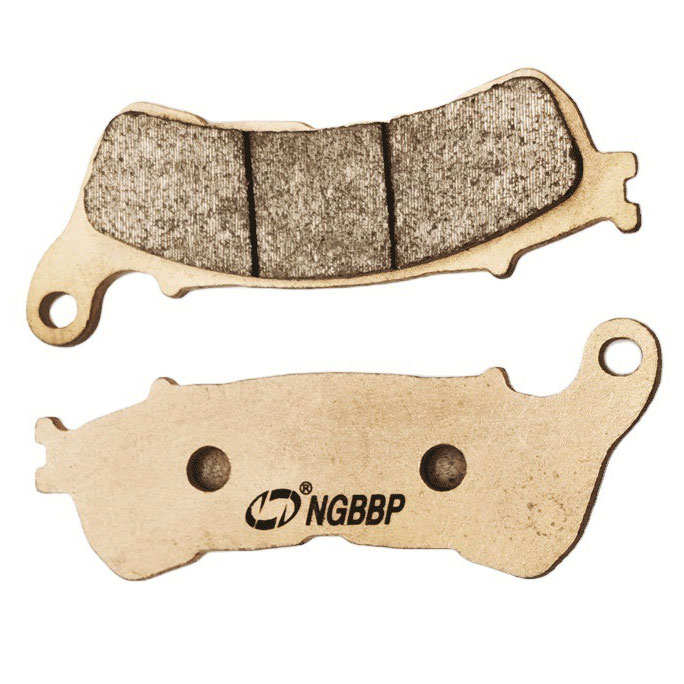

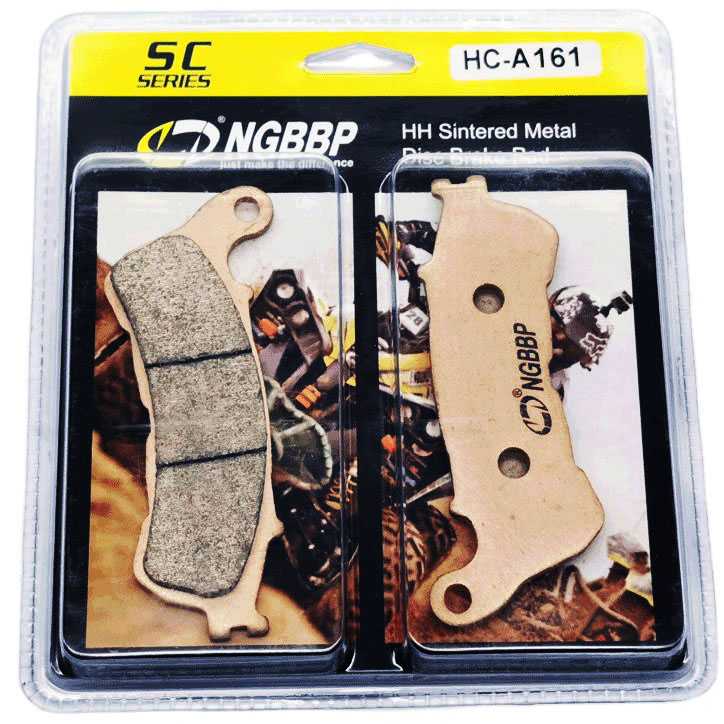

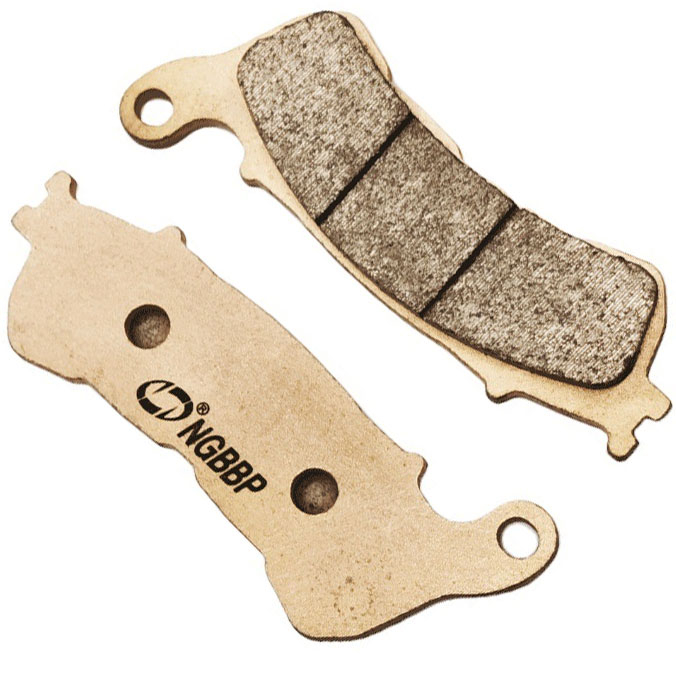

Factory direct sale, high quality at low price HH sintered copper brake pad
| Model | HC-A161SC |
| Material | Sintered Copper |
| Size | 118 x 47 x 8.5MM |
| Packaging | Vacumm shrink/ blister/ bubble shell |
| Brand | NGBBP |
| Color | Golden , Copper color |
| Process | Sintered Powder Metallurgy |
| Applicable terrain | OFF ROAD ,RACING ,MOTOCROSS... |
| MOQ | 300SETS |
| OEM/ODM | Avaiable |
| Warrany | One year |
| Fit for | Honda FES125 FES150 SH125i SH150 NSS250 NSS300 SH300i SW-T4 CBF GL1800 NC700 |
| Certification | ISO14001 ,IATF16952 |
| Place of origin | China |
Characteristics
HH Grade high static friction coefficient up to 0.55μ .
Superior stopping power compared to carbon organic, Kevlar organic, or semi-metallic organic pads.
High temperature resistance up to 800℃，(max. 1003°C) .
The lowest wear rate determines Low abrasive interaction with the brake rotor.
Performing exceptionally well in wet or muddy condition .from commuting, to stunt or street-race riding, to extended high-speed highway or road-race driving.
Compatible with cast iron, steel or advanced stainless-steel rotors.
The sintered friction material is soldered to the copper
coated backing plate by the means of powder metalurgy. so separation is virtually eliminated
Parameters Chart
Application
| HONDA |
| FES 125 A7/A9/AA S-Wing 07-13 F |
| FES 125 7/9/A S-Wing (Non ABS Model) 07-13 F |
| SH 125i 9/A/B Fuel Injection 09-12 F |
| SH 125i RA (Fuel injection/rear disc model) 10-13 F |
| FES 150 7/9/A S-Wing 07-13 F |
| FES 150 A7/A9/A (S-Wing) ABS Model 07-13 F |
| SH 150i 9/A/B Fuel Injection 09-12 F |
| SH 150 RA Fuel Injection (Rear disc) 10-13 F |
| CBR 250 RAB/RAC (ABS) 11-13 F |
| NSS 250 EX5/EX7/EX8 (ABS) Forza EX 05-08 F |
| NSS 250 AX5/AX6/A7 (ABS) Forza Z 05-07 F |
| NSS 250 X5/X7/X8 Forza 05-08 F |
| PS 250 5/6 Big Ruckus 05-06 F |
| NSS 300 AD Forza 13 F |
| SH 300i 7/8/9/A/B (Non ABS) 07-12 F |
| SH 300i A7/A8/A9/AA/AB/AC (ABS Model) 07-13 F |
| SH 300i R8/R9/RA (Non ABS) 08-10 F |
| SH 300i AR8/AR9/ARA (ABS Model) 08-10 F |
| SW-T 400 (FJS 400 D9) 09 F |
| SW-T 400 (FJS 400 A9/AB ABS Model) 09-13 F |
| CBF 500 A4/A5/A6 (ABS) 04-07 F |
| CB 600 FA7/FA8/FA9/FAA/FAB Hornet (ABS) 07-13 F |
| CBF 600 NA8/NA9/NAA (ABS) 08-11 F |
| CBF 600 SA8/SA9/SAA (ABS) 08-12 F |
| SUZUKI |
| UH 125 K7/K8/K9/L0/L1/L3 Burgman 07-13 F |
| UX 125 K8/K9/L0/L1 SIXteen 08-11 F |
| UX 150 K8/K9/L0/L1 SIXteen 08-11 F |
| UH 200 K7/K8/K9/L0/L1/L3 Burgman 07-13 F |
| C 1800 R (VLR 1800 K8/K9/L0/L1 C 1800 R Intruder) 08-13 F |
| C 1800 RT VLR 1800 K8RT/K9RT |
| C 1800 RT Touring Intruder 08-10 F |
