| Quantity: | |
|---|---|
HC-A049SC
NGBBP
HC-A049SC
APRILIA, BETA, HONDA, KAWASAKI, YAMAHA
HONDA
Specifications

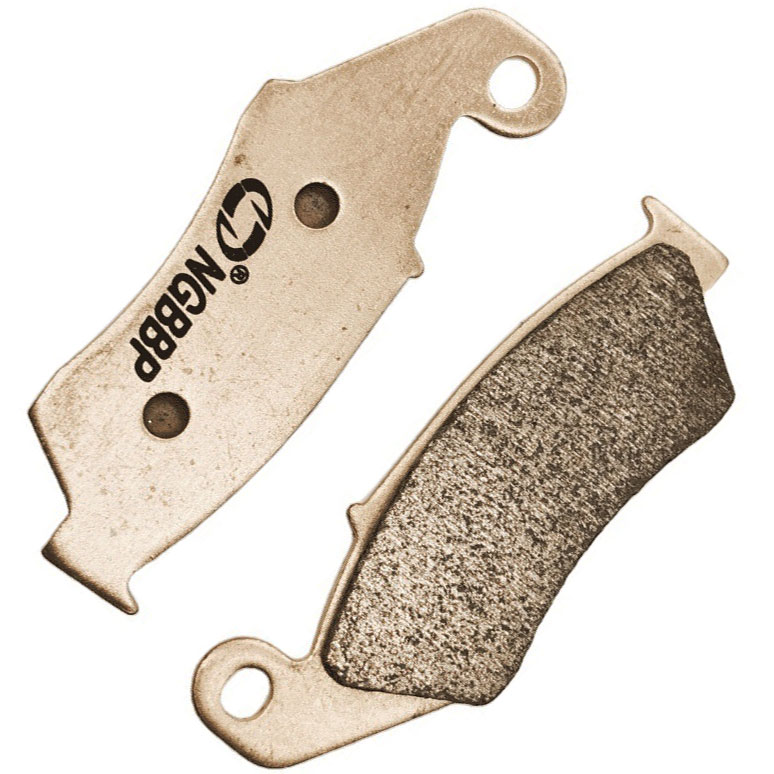

Factory direct sale, high quality at low price HH sintered copper Motorcycle brake pad
| IMAGES |  |
| Model | HC-A049SC |
| Material | Sintered Copper |

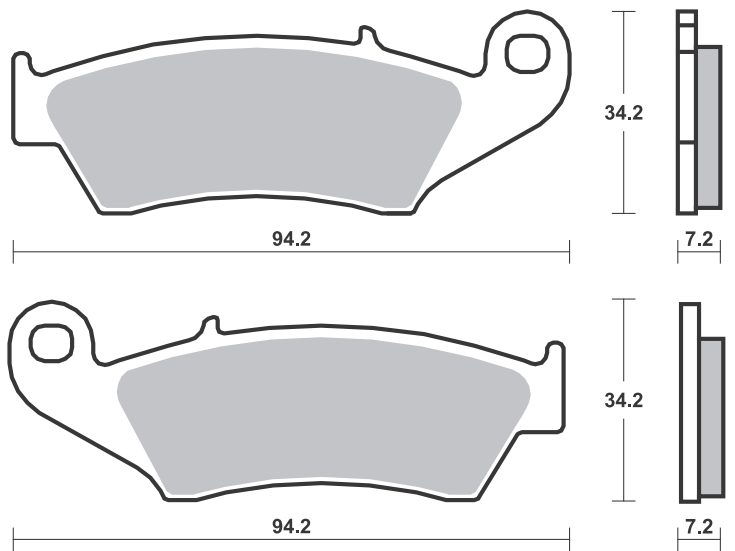

| Size | 94 x 34 x 7mm |

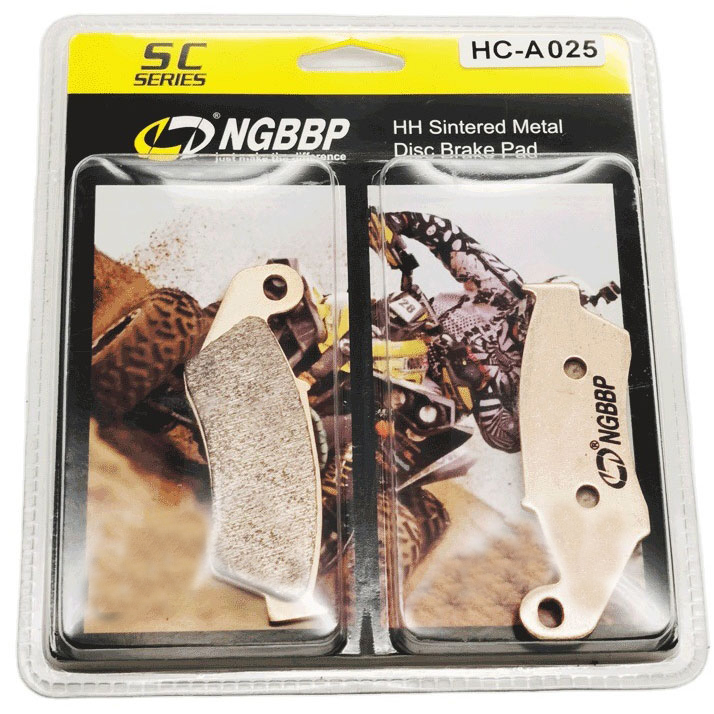

| Packaging | Vacumm shrink/ blister/ bubble shell |
| Brand | NGBBP |
| Color | Golden , Copper color |
| Process | Sintered Powder Metallurgy |
| Applicable terrain | OFF ROAD ,RACING ,MOTOCROSS... |
| MOQ | 300SETS |
| OEM/ODM | Avaiable |
| Warrany | One year |
| Fit for | KAWASAKI KX-F 450 X Enduro KX-F 250 SUZUKI DR 125 RM-Z 450 HONDA CRF 150 F DIRT BIKE |
| Certification | ISO14001 ,IATF16953 |
| Place of origin | China |
Characteristics
HH Grade high static friction coefficient up to 0.55μ .
Superior stopping power compared to carbon organic, Kevlar organic, or semi-metallic organic pads.
High temperature resistance up to 800℃，(max. 1004°C) .
The lowest wear rate determines Low abrasive interaction with the brake rotor.
Performing exceptionally well in wet or muddy condition .from commuting, to stunt or street-race riding, to extended high-speed highway or road-race driving.
Compatible with cast iron, steel or advanced stainless-steel rotors.
The sintered friction material is soldered to the copper
coated backing plate by the means of powder metalurgy. so separation is virtually eliminated
Parameters Chart
Application
| AJP |
| PR5 Enduro 250cc 09 F |
| ALFER |
| AR 250 93- F |
| APRILIA |
| MXV 450 09-13 F |
| RXV 450/550 Enduro 06-13 F |
| BETA |
| RR 250 2T 13 F |
| RR 250 4T Enduro 05-07 F |
| RR 300 Enduro 2T 13 F |
| RR 350 4T Enduro 11-13 F |
| RR 400 4T Enduro 05-13 F |
| RR 450 4T Enduro 05-13 F |
| RR 450 4T Cross Country 12 F |
| RR 498 4T Enduro 12-13 F |
| RR 520 Enduro 05-11 F |
| RR 525 4T Enduro 05-09 F |
| HONDA DALL’ARA |
| XR 125 SM 04 F |
| XR 250 R 04 F |
| XR 250 SM 04 F |
| XR 400/440 R 04 F |
| XR 400/440 SM 04 F |
| XR 650 R 04 F |
| YAMAHA |
| YZ 125 K/L/M/N/P/R/S/T/V/W (2T) 98-07 F |
| WR 250 FN/FP/FR/FS/FT/FV/FW/FX/FY/FZ |
| /FA/FB/FD (4T) 01-13 F |
| WR 250 ZK 98 F |
| WR 250 RX/RY (32D1/3) 08-10 F |
| YZ 250 K/L/M/N/P/R/S/T/V/W 98-07 F |
| YZ 250 FN/FP/FR/FS/FT/FV (4T) 01-06 F |
| YZ 400 FK/FL 98-99 F |
| WR 400 FL/FM/FN 99-01 F |
| WR 426 FN/FP 01-02 F |
| YZ 426 FM/FN/FP 00-02 F |
| WR 450 FR/FS/FT/FV/FW/FX/FY/FA/FB/FD (4T) 03-13 F |
| YZ 450 FR/FS/FT/FV/FW 03-07 F |
